How do design variations in stainless steel abnormity springs affect their performance and application suitability

Spring Geometry: The geometry of a stainless steel abnormity spring, including coil diameter, wire diameter, and the number of active coils, profoundly impacts its mechanical performance. Springs with a larger coil diameter and thicker wire generally exhibit increased load-bearing capacity and higher stiffness, which makes them suitable for heavy-duty applications requiring substantial force. Conversely, springs with smaller coil diameters and thinner wires offer greater flexibility and can be utilized in applications where lighter forces and higher deflections are needed. The specific geometry must be matched to the application's force requirements and space constraints to optimize performance.

Material Composition: Stainless steel springs are available in various grades, such as 304, 316, and 17-4 PH, each with distinct properties affecting strength, corrosion resistance, and thermal stability. Grade 304 stainless steel, known for its good all-around properties, is often used in less corrosive environments. In contrast, Grade 316 stainless steel, which offers superior resistance to corrosion from chemicals and salt, is preferred for marine or chemical applications. Grade 17-4 PH provides enhanced strength and hardness through precipitation hardening, making it ideal for high-stress applications. Selecting the appropriate stainless steel grade is critical for ensuring that the spring performs reliably in its intended environment.

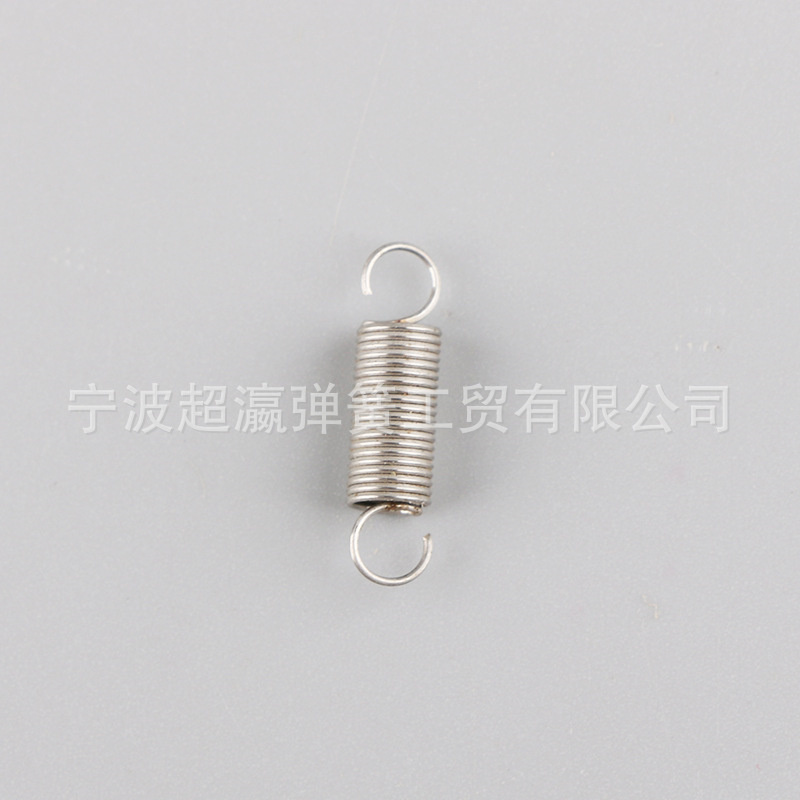

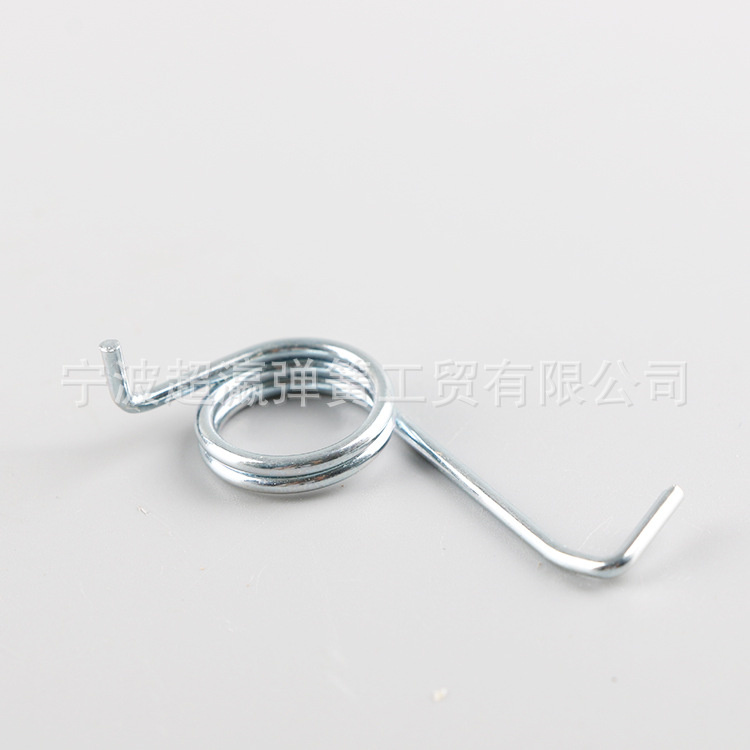

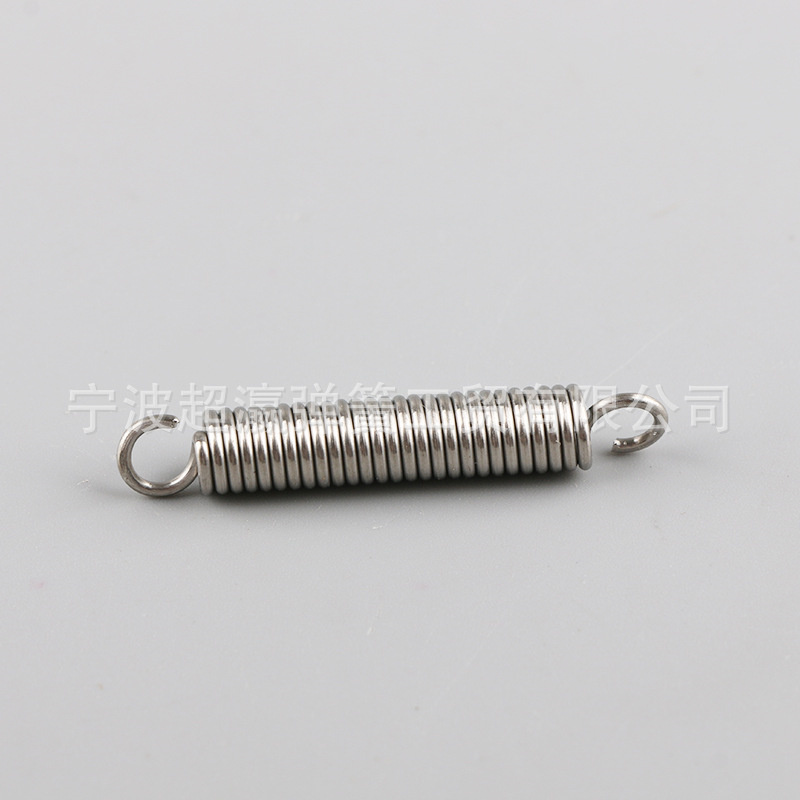

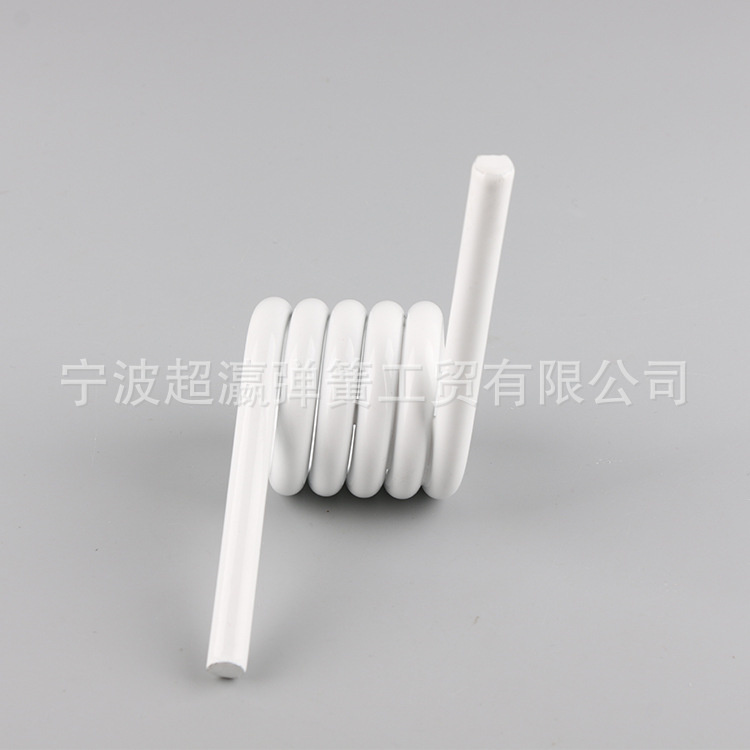

Spring Type: Abnormity springs can be classified into various types based on their load-handling capabilities: compression, tension, and torsion springs. Compression springs are designed to resist compressive forces and are used in applications where space is compressed. Tension springs, on the other hand, are designed to handle tensile forces and are commonly used in mechanisms requiring pulling action. Torsion springs resist rotational forces and are used in applications where torque needs to be managed. Each spring type has distinct design parameters and applications, and selecting the right type is essential for achieving desired performance outcomes.

Coil Configuration: Variations in coil configuration, such as conical (tapered) or barrel-shaped coils, influence the spring's force-displacement characteristics. Conical springs provide a progressive load increase, which can be advantageous in applications that require a gradual rise in resistance. Barrel-shaped coils can offer improved stability and load distribution. The choice of coil configuration affects how the spring performs under varying loads and impacts its suitability for specific applications, such as automotive or aerospace components.

End Treatments: The design of the spring's ends—whether closed, open, or ground—affects how the spring interfaces with other components and its overall mechanical performance. Closed ends, where the coils are tightly wound, offer improved alignment and load distribution. Ground ends, which are finished flat, ensure consistent contact with mating surfaces and reduce the risk of uneven loading. Open ends are used where precision fit is less critical. Proper end treatment is essential for achieving reliable performance and minimizing issues such as coil binding or misalignment in applications.

Load Characteristics: Different design variations impact how the spring responds to various types of loads—static, dynamic, or impact. Springs with higher stiffness are typically suited for static loads where consistent force is required. Conversely, springs with lower stiffness or those designed for specific damping characteristics are better for applications involving dynamic loads or shock absorption. Understanding the load characteristics is essential for selecting a spring that can handle the expected forces without compromising performance or durability.
